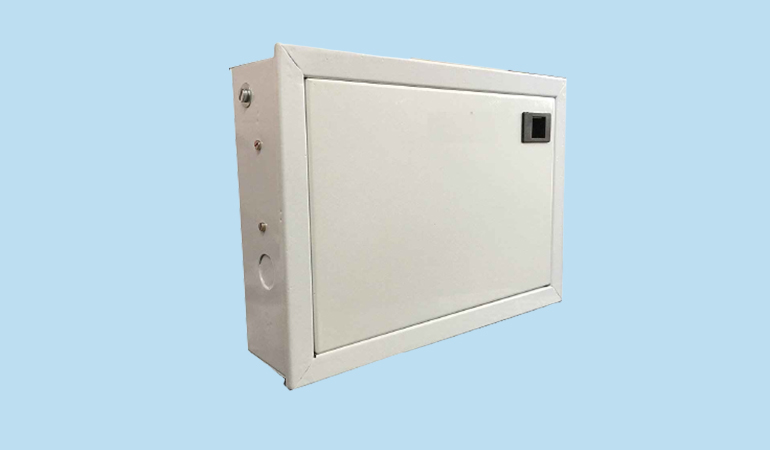

MCB BOX

MCB BOX

MCB (Miniature Circuit Breaker) is a distribution box that is fixed or provided in every apartments in modern societies. Instead of MCB box, a 32 Ampere DP switch was fixed that had an on-off switch. MCB box concept didn't exist as they were not aware of such a thing as MCB.

  • Let’s understand how MCB
  • How does MCB work?
  • Where is MCB installed/ fixed?

In every society there’s a Meter Room. This meter room has boxes/ switches that supplies electricity to every apartment in the building individually. The current passes through wires and cables from the meter room to the MCB box that is fixed in every apartment. The wires/ cables that run from meter room to each apartment is always concealed wiring. The electric connection/distribution for each rooms in an apartment is done from the MCB.

MCB are miniature circuit breakers that break/trip when excess current passes through the meter room to the MCB. Let’s say there’s some circuit problem like sort circuit, the current gets tripped in the MCB only without damaging the electric components in an apartment.

MCB is generally installed in the passage of every apartment. The connections/wiring done from this box to every room is also usually concealed in modern homes. But the main connections given to MCB board are kind a messy. There are few reasons for MCB being installed in passage area and not living room like-

The look of distribution box for electric line through that box is not good/messy.

The look and feel of the interior can be maintained in living room. I mean no home-owner would like to have a big box seen hanging in living room with so many switches.
